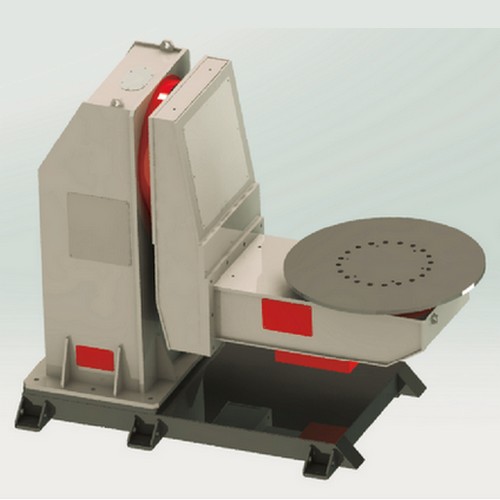

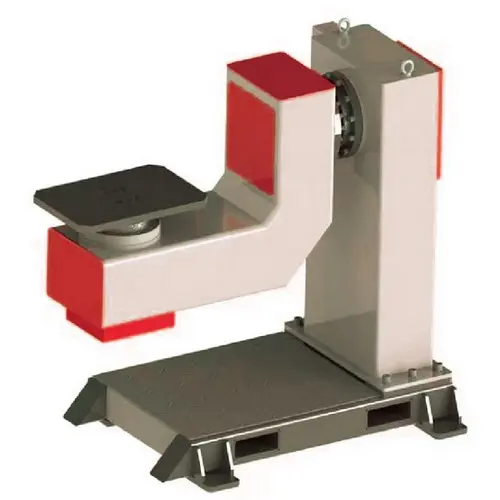

Dual-Axis L-Type Positioner

The Dual-Axis L-Type Positioner is a high-performance industrial automation system designed to manipulate small-to-medium workpieces with complex geometries. Featuring an L-shaped arm configuration, this positioner enables 360° horizontal rotation and ±180° vertical tilting, providing optimal access to weld joints, machining surfaces, or assembly points. Ideal for industries like automotive, aerospace, and electronics, it handles components such as engine brackets, sensor housings, and robotic arm parts with sub-degree precision.

Compact yet robust, the L-type design minimizes floor space while maximizing load capacity (up to 2,000 kg). Its modular structure allows integration with robotic arms, CNC machines, or manual workstations, streamlining production cycles for high-mix, low-volume manufacturing.

Dual-Axis Flexibility

Independent Control: Program horizontal (0.1–3.0 RPM) and vertical (0.05–1.5 RPM) axes simultaneously.

Synchronized Motion: Seamless coordination for 3D welding paths or multi-angle machining.

Space-Saving L-Arm Design

Low-profile structure fits tight production areas without compromising reach.

Heat-treated steel construction resists deformation under dynamic loads.

Smart Clamping Solutions

Quick-change fixtures (mechanical, vacuum, or magnetic) for rapid workpiece swaps.

Auto-centering function aligns irregular parts with ±0.5 mm accuracy.

Advanced Automation Integration

Plug-and-Play Compatibility: Interfaces with Fanuc, KUKA, Yaskawa, and Universal Robots controllers.

IoT-enabled sensors for real-time torque monitoring and predictive maintenance alerts.

Automotive: Rotating suspension components for robotic MIG welding.

Electronics: Tilting circuit board housings for laser soldering.

Aerospace: Positioning turbine blades for precision TIG welding.

General Fabrication: Multi-angle drilling/milling of aluminum frames.
